| 型號Mf72- |
R25(Ω) |
最大穩(wěn)態(tài)電流(A) |
最大電流時近似電阻(Ω) |
耗散功率mw/℃ |
時間常數(shù)(S) |
工作溫度(℃) |
| 3D9 |
3 |
4 |
0.120 |
11 |
35 |
-55~+200℃ |
| 4D9 |
4 |
3 |
0.190 |
11 |
35 |
| 5D9 |
5 |
3 |
0.210 |
11 |
34 |
| 6D9 |
6 |
2 |
0.315 |
11 |
34 |
| 8D9 |
8 |
2 |
0.400 |
11 |
32 |
| 10D9 |
10 |
2 |
0.458 |
11 |
32 |
| 12D9 |
12 |
1 |
0.652 |
11 |
32 |
| 16D9 |
16 |
1 |
0.802 |
11 |
31 |
| 20D9 |
20 |
1 |
0.864 |
11 |
30 |
| 22D9 |
22 |
1 |
0.950 |
11 |
30 |
| 30D9 |
30 |
1 |
1.022 |
11 |
30 |
| 33D9 |
33 |
1 |
1.124 |
11 |
30 |
| 50D9 |
50 |
1 |
1.251 |
11 |
30 |
| 60D9 |
60 |
0.8 |
1.502 |
11 |
30 |
| 80D9 |
80 |
0.8 |
2.010 |
11 |
30 |
| 120D9 |
120 |
0.8 |
3.015 |
11 |
30 |
| 200D9 |
200 |
0.5 |
5.007 |
11 |
32 |
| 400D9 |
400 |
0.2 |
9.852 |
11 |
32 |
注： ①若非特別指出，R25的允許偏差為±20% ②B值：28003000

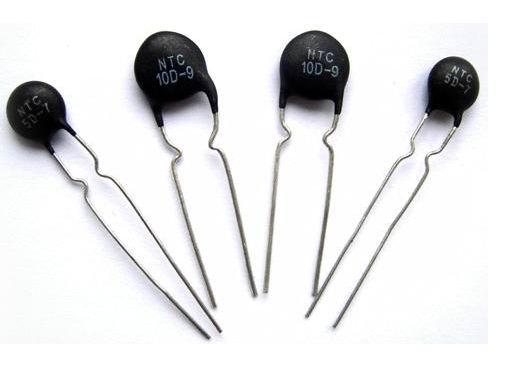

產品尺寸圖例
